Short-path Distillator
DZQ Molecular (Short Path）Distillator,which had designed unique built-in condenser structure, so as to ensure the effect of short range distillation. It is widely used in VE, dimmer acid, pesticide,lactic acid chemical industries for precipitation, multilevel purification processes. Distillator mainly composed of rotor, scraper, built-in condenser, main cylinder, separation tube and so on. Options of rotor type (wipe film unit) are available, such as moveable scraper blade, hinged scraper blade, elastic scraper blade, roll film, limit hinge scraper blade, soft scraper blade.
DZQ Short-path(molecular) Distillator

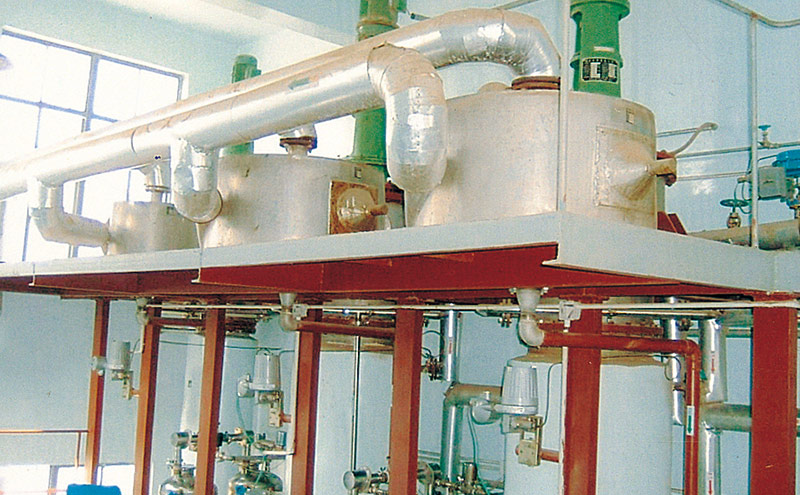

Evaporation and distillation unit plant at meiJi Ltd（Japan）
Delivery of 30m2 short path distillator
Machined internal surface of cylinder
在乳酸生产线使用的短程蒸馏器
在三级分子共扼亚油酸项目中使用的短程蒸馏器Product Features
High heat transfer coefficient, good evaporation, short dwell time and low evaporation temperature.
Extremely small pressure drop, high working vacuum, great operating flexibility and adaptability.
Close distance between evaporating surface and condensing surface， separate materials better.
Extremely small pressure drop, high working vacuum, great operating flexibility and adaptability.
Close distance between evaporating surface and condensing surface， separate materials better.
Technical Parameters
Evaporator surface area (m2): 0.5, 2, 4, 6, 8, 10, 15, 20, 25, 30, 50, 65.
We can provide the special design to your working conditions. Respect the final drawings for all dimensions and weight.
We can provide the special design to your working conditions. Respect the final drawings for all dimensions and weight.
